2.4GHz Active Tag (Assets Management Type)
Main Features:
1.Ultra-low-power, average working current <10uA.
2.Small size design suit for IT assets, valuable items, equipment and instruments
3.2.4G identify range can reach 80 meters, reading range adjustable via software.
4.Light sensor, alarm signal will send out once removed from object.
Parameters:
Model No
MR3848
Type
Beacon type, MAX RF power 0dBm
Inductive mode
Initiative transmit, transmit every 3second
Material
ABS, heat resistant ,Black Color
Dimension
42*18.2*7.3mm (without 3M) 3M layer thickness is 1.55mm
Weight
7g
Battery
Battery life3 years (signal time interval is 3s)
IP Grade
IP54
Signal Modulation Mode
GFSK
Communication Speed
1Mbit/s
Operating Frequency
2.44GHz
Quiescent Current
<3uA
Average Current
<10uA
Battery mode
CR1632
Operating Temp
-20℃~+45℃
Storage Temp
-30℃~65℃
Certifications
CE & FCC

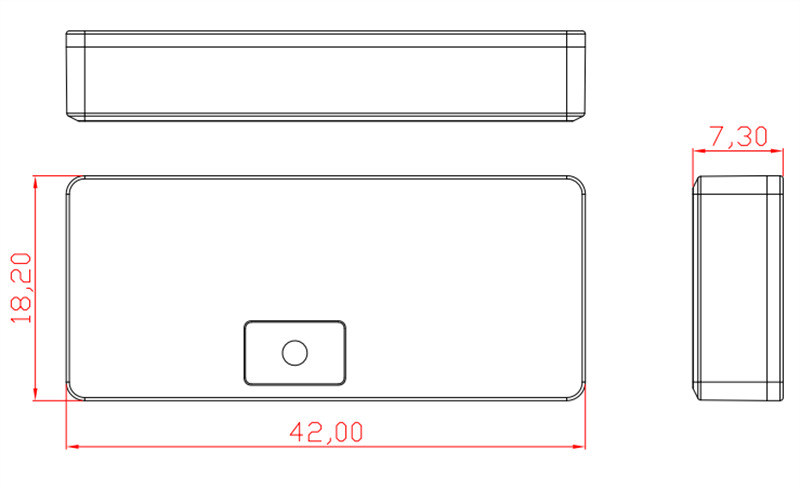

Dimension

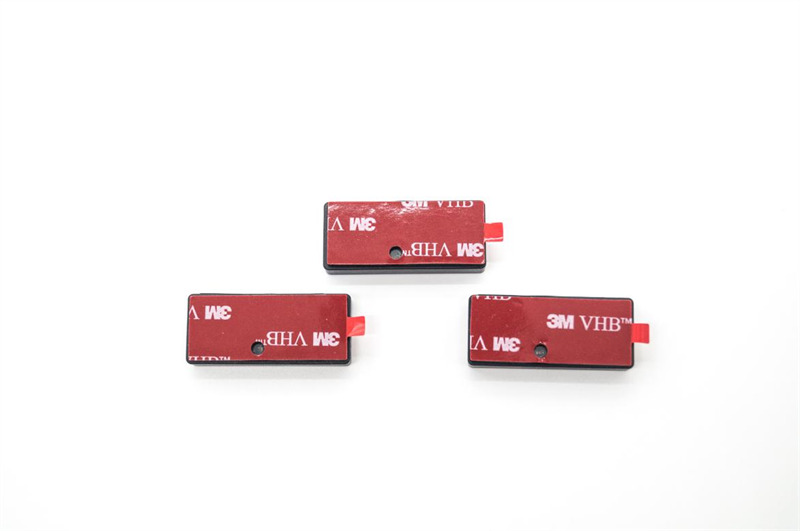

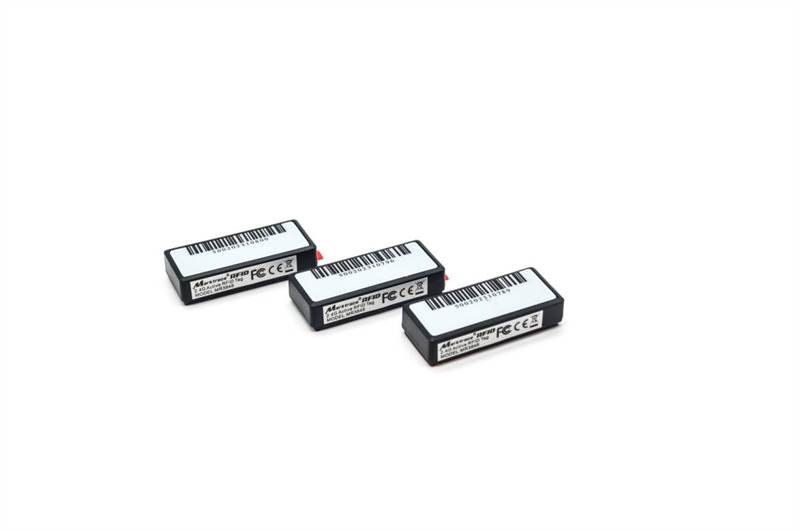

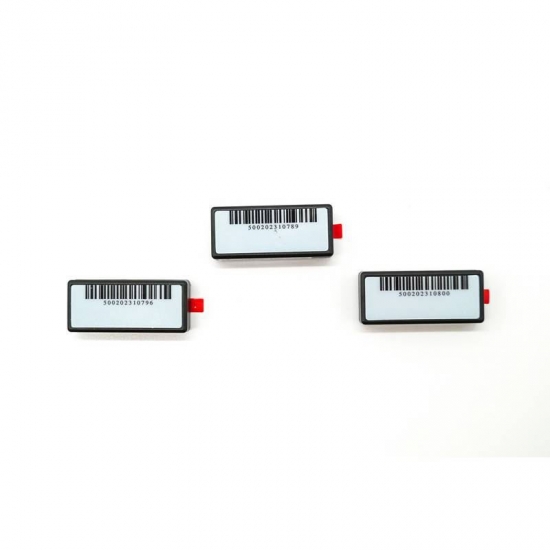

Photos:
|
|
