item no.:
MR3837Cpayment:
Payment In T/Tproduct origin:
Chinashipping port:
Shenzhen portlead time:
1-7 Working Days After Payment Received2.4G Rugged Assets Mount Tag Wholesale
Main Features:
1.Suitable to adopt fixed frequency working mode, with powerful anti-jamming ability;
2.Effective reading range up to 400m (working with reader model MR7901P, open air environment. depend on reader and antenna, software configurable);
3.Super wide working band design, conforming to relevant industry rules and also flexible in application development;
4.Multiple-tag reading at the same time , no limitation or interference by tag quantity in the reading range.
5.Ultra-low power consumption,average working current<15uA
6.Typical application are Safe City Electric Bike tracking, Motorcycle Tracking, Tunnel and Miners Security Monitoring, IT Assets Tracking, Construction Raw Material Inventory etc.
Parameters:
Model No |
MR3837C |
Operation frequency |
2402-2483MHz |
Type |
Beacon Type |
Signal modulation |
GFSK |
Communication speed |
1Mbit/s |
Inductive mode |
Initiative Transmit, Transmit Every 1s |
Output power |
7dbm |
Material |
ABS, Heat Resistant , |
Dimension |
40MM*40MM*10.8MM |
Battery |
Battery Life Up to 3 years |
IP Grade |
IP67 |
Installation |
Fixed installation, hidden installation, screw |
Color |
Gray |
Weight |
14g |
Unique ID |
4 bytes Data in HEX, Lester Marking |
Battery model |
CR2450 |
Battery capacity |
550mAh/3V |
Operating temperature |
-20℃~+45℃ |
Storage temperature |
-30℃~+65℃ |
Operating humidity |
10%~80% |
Storage humidity |
10%~95% |
Dimension

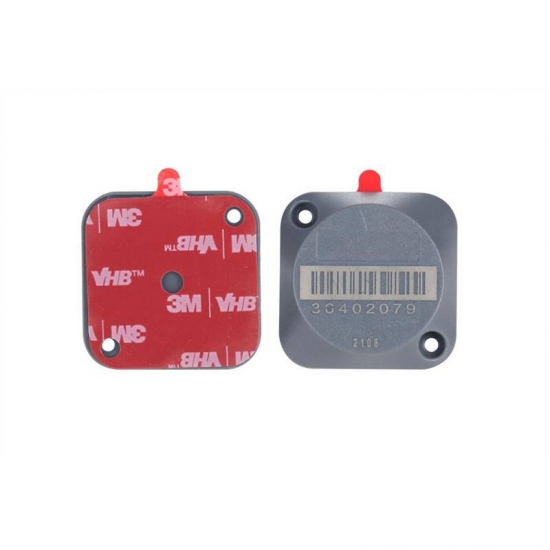

Photos:
|
|
