MR6261E UHF RFID short range integrated reader can quickly and accurately read RFID tags from short distances and has various communication interfaces.
2.4G Current Monitoring RFID Tag adopt RFID technology and current measurement technology,In real-time to control equipment current.
2.4GHz active tag suitable for adopt fixed frequency working mode, with powerful anti-interference ability,very important part of a RFID system.
2.4GHz Active RFID tags: 2.4GHz students cards are designed for students security attendance, assets inventory, vehicle tracking and livestock outdoors tracking. It is dual frequency card with 2.4GHz and 13.56MHz, used for auto-attendance recording and payment, respectively.
Omni-directional rfid reader are widely used for people tracking and assets inventory, such as laptops, equipment. Max reading range is 80m radius.
item no.:
ZR2798payment:
Payment In T/Tproduct origin:
Chinashipping port:
Shenzhen portlead time:
1-7 Working Days After Payment Received2.4G RFID Edge computing AI camera
Key Features:
ZR2798 is a camera that can read 2.4G smart earmarks, integrates temperature and humidity sensors, integrated animal husbandry AI edge algorithms, and acquisition and analysis of animal temperature movements and movements in real time. The built -in AI intelligent algorithm can analyze animal behavior and animals. Physiological phenomenon is judged and warned.
Features:
1.The embedded RFID reader reads the active electronic tag (ear tag) and reads distance from 200 meters.
2.Camera image recognition, collect animal movement movements.
3.Combine the data of animal temperature motion value data, action graphics data, embedded AI algorithm, edge calculation, to judge and predict animal physiological characteristics.
Parameters:
Model |
ZR2798 |
MCU |
CV1821 |
Image pixel |
2 million |
Video storage time |
7 days (prevails with the size of the SD card) |
Weight |
464g |
Dimension |
157.5*86*86mm |
Signal modulation mode |
GFSK |
Traffic rate |
1Mbit/s |
Working frequency |
2440MHz |
Reading range |
MAX 200m |
Material |
PVC, white color |
Voltage |
15V |
Currency |
500mA |
Operating temperature |
-20℃~+70℃ |
Storage temperature |
-30℃~70℃ |
Transfer method |
TCP/IP |

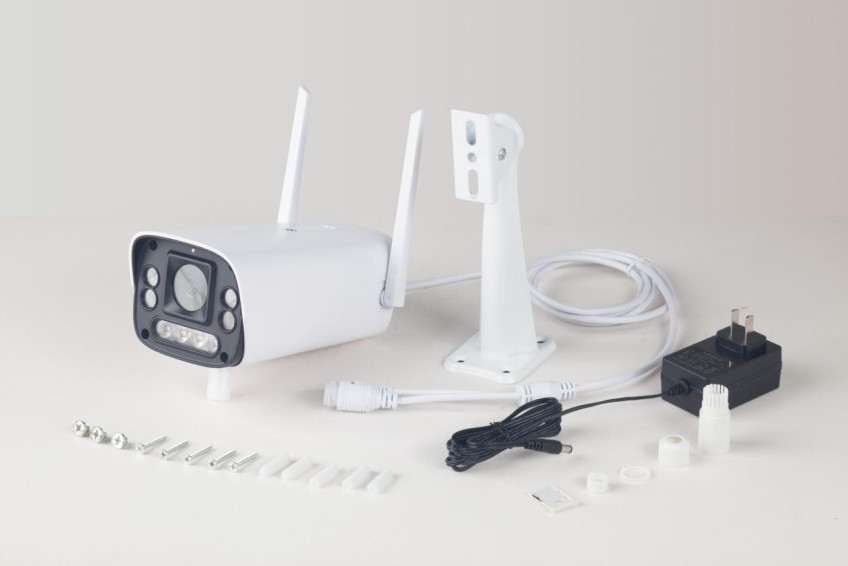

Accessories:

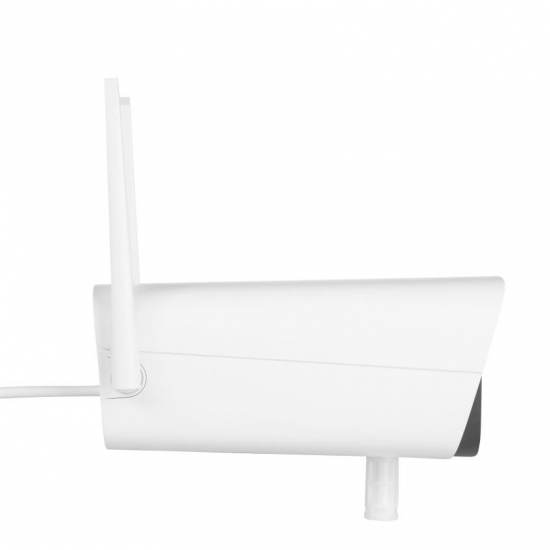

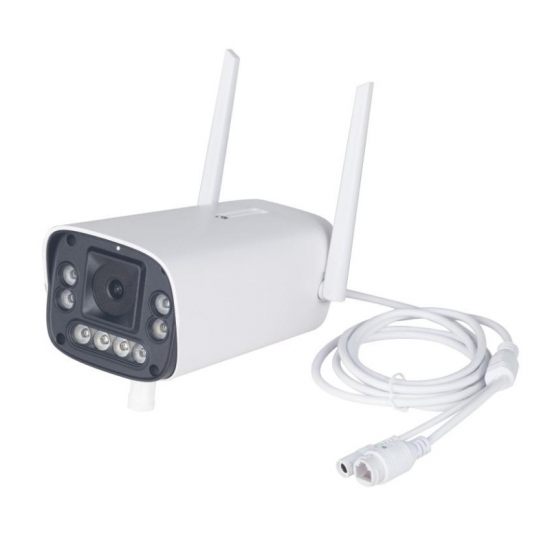

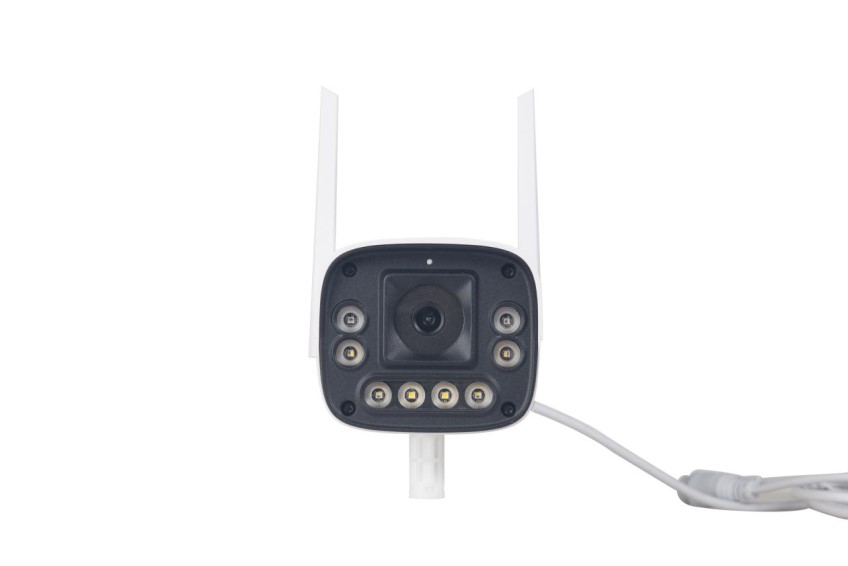

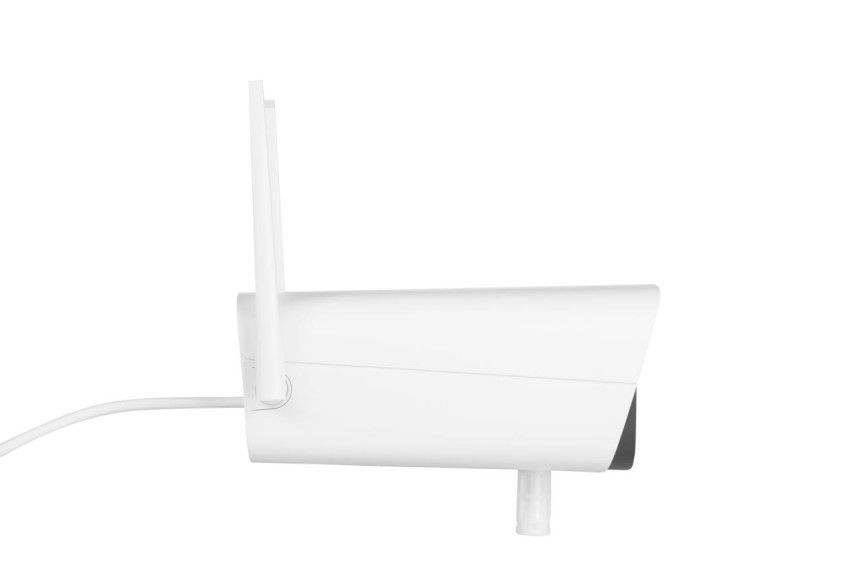

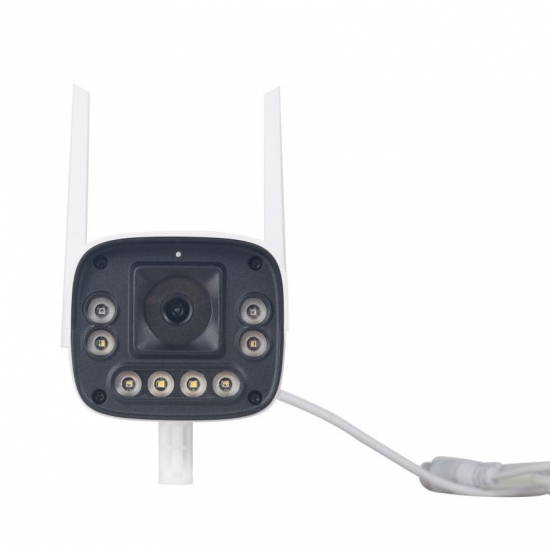

Photos:
