item no.:
MR3102Epayment:
Payment In T/Tproduct origin:
Chinashipping port:
Shenzhen portlead time:

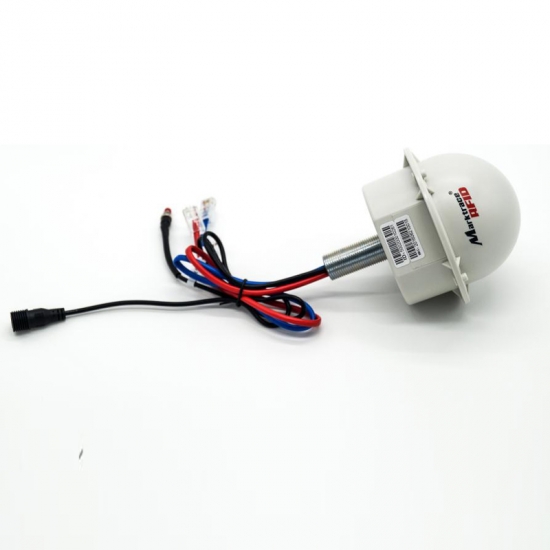

1-7 Working Days After Payment Received2.4G Omni-directional RFID reader
Key Features:
MR3102E Omni-directional reader suit for “non-directional identify” .MR3102E applying in far distance, quick identification, meeting the special demand of identification, can identify, track and orientate more than 100 active tags simultaneity.
1.2.5dBi Antenna;
2.Ceiling mount design;
3.Double Polarization Design - It radiates in both horizontal and vertical directions in order to minimize signal blind area;
4.Dual High Performance RF Transceiver chips - Gives high reading speed and outstanding stability;
5.Applications - Best for indoor attendance and access control, goods logistics tracking and assets inventory management;
6.Working with all MarktraceRFID active tag like IT assets tracking tag, student attendance card more than 13 types.
Parameters:
Items |
Parameter |
Material |
ABS |
Dimension |
92*Φ110mm |
Weight |
200g |
Way to install |
wall-mounted, ceiling fixed |
Indicator |
Buzzer and LED |
Color |
White |
Ingress Protection |
IP54 |
Identify type |
Omnidirectional, 360 degree covered |
Signal modulation mode |
GFSK |
Traffic rate |
1Mbit/s |
Working frequency |
2440MHz |
Reading range |
20cm to 80m radius |
MAX receive sensitivity |
-89dbm |
Antenna Gain |
2.5dbi,dual polarization |
Protocol |
MarktraceRFID protocol |
Communication interface |
RS232 and TCP/IP |
Standby current |
101mA |
Working current |
202mA |
Working voltage |
9V DC |
Certifications |
FCC and CE |
Working temperature |
-20℃~+60℃ |
Storage temperature |
-40℃~80℃ |
Certifications |
FCC and CE |

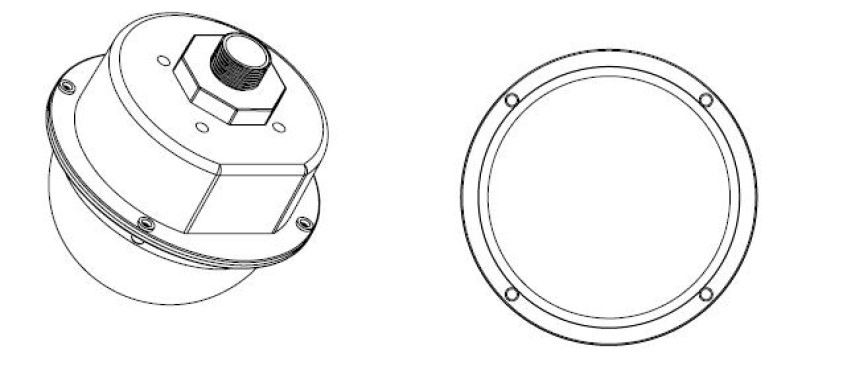

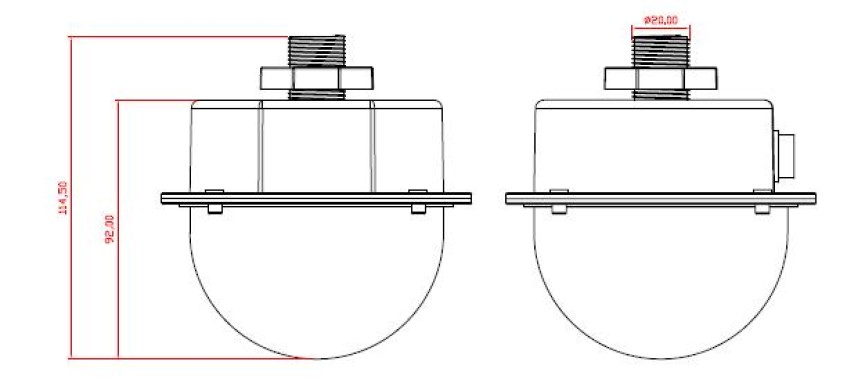

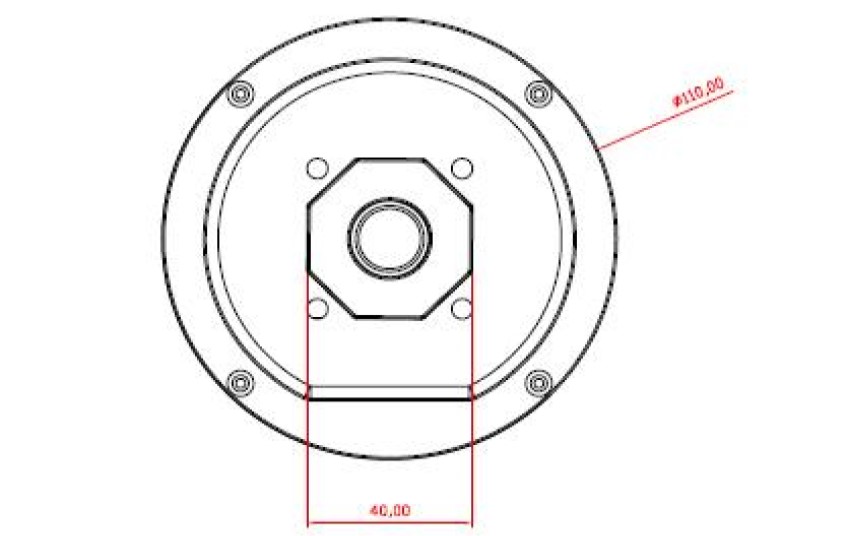

Dimension:

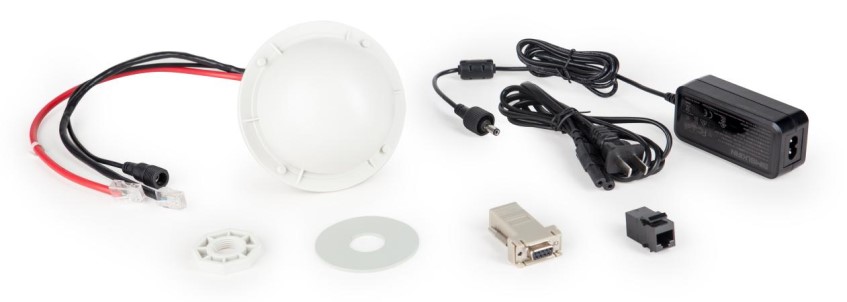

Accessories:
